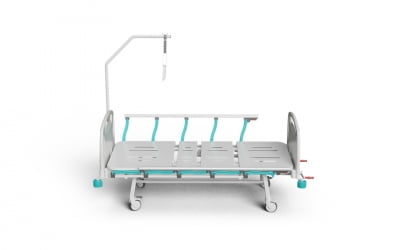

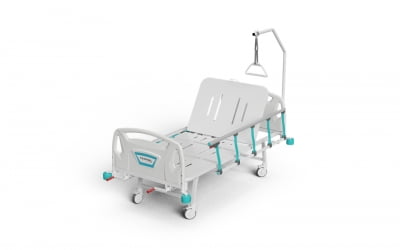

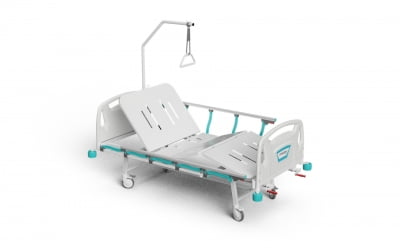

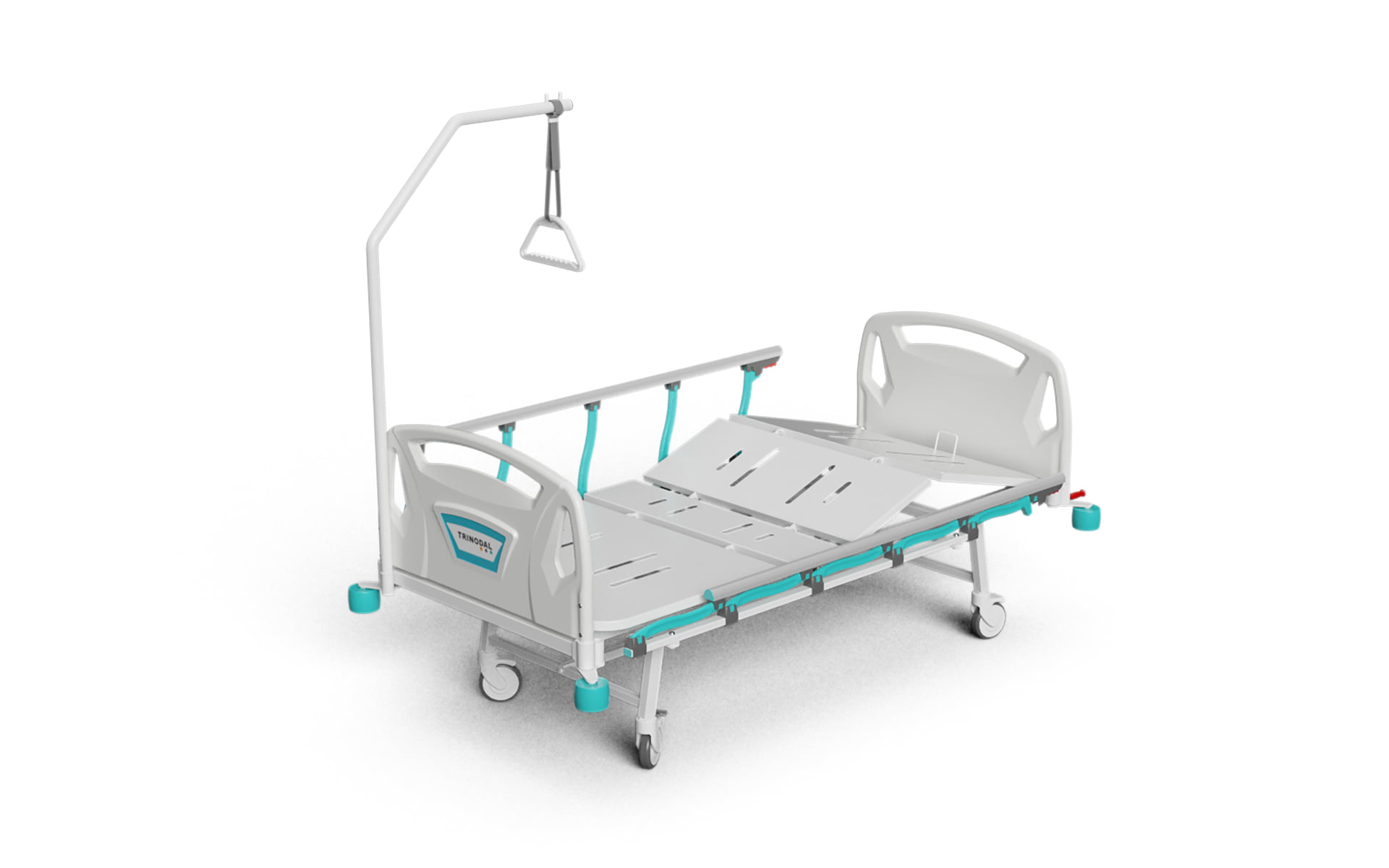

4 Sections 3 Adjustments Manual Bed
DM 2220 is a basic mechanical bed with three adjustments for back-rest, knee-rest and footrest. It has Polypropylene head and foot boards and patented aluminum foldable side rails. It is designed with foldable legs to decrease the transportation cost for distributors and dealers.
Datasheet
 |
Click here for download datasheet. |
- Four Sections Three Adjustments Manual Bed
- 70° Backrest Adjustment
- 45° Kneerest Adjustment
- Foldable Legs
- Metal Bed Surface
- Aluminum Foldable Side Rails
- Manuel Footrest Adjustment
- Stainless Steel I.V. Pole
- Trapeze Bar for Patients Lift
- Polypropylene Head & Foot Boards
- Cross Lockable Castors
- Epoxy Powder Coated Main Construction
- External Dimension: Width 1070 mm, Length 2170 mm
- Height: 500 mm
- Bed Surface Dimension: Width 900 mm, Length 2000 mm
- Standard Weight Capacity: 210 kg
- Two Individual Lockable Castors: 125 mm
- Second I.V. Pole
- Urine Bag Holder
